Standards
USB Specification version 2.0
USB Specification version 1.1
USB Specification version 1.0
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
General
USB type-A connector
RJ45 connector
Certifications: FCC Class B, CE, RoHS
LEDs
Link
10/100 Mbps
Power
USB bus-powered
Operating mode: 185 mA
Suspend mode : 23 mA
Environmental
Dimensions: 97 (L) x 23 (W) x 15 (H) mm (3.8 x 0.9 x 0.6 in.)
Weight: 145 g (5.11 oz.)
Operating temperature: 0 – 40°C (32 – 104°F)
Storage temperature: -10 – 80°C (14 – 176°F)
Storage humidity: 5 – 85%, non-condensing
System Requirements
Desktop or laptop system with USB 1.1, USB 2.0 or USB 3.0 port
Windows XP/Vista/Windows 7/8, Mac OS 10.4 and later
Package Contents
Hi-Speed USB 2.0 to Fast Ethernet Adapter
Setup CD
Instructions
Standards USB Specification version 2.0 USB Specification version 1.1 USB Specification version 1.0 IEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet) General USB type-A connector RJ45 connector Certifications: FCC Class B, CE, RoHS LEDs Link 10/100 Mbps Power USB bus-powered Operating mode: 185 mA Suspend mode : 23 mA Environmental Dimensions: 97 (L) x 23 (W) x 15 (H) mm (3.8 x 0.9 x 0.6 in.) Weight: 145 g (5.11 oz.) Operating temperature: 0 – 40°C (32 – 104°F) Storage temperature:
ORICO-USB2.0 TO RJ45 Adapter 1) Material: ABS 2) Color: Black/White 3) Output: RJ45 4) Input: USB2.0 Type-A 5) Band width: 100Mbps 6) Dimension: 71.6mm*27mm*16mm 7) Power supply: USB 8) Cable: All-in-one design, cable length 7.5cm

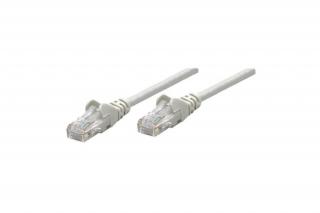

Manhattan Kábel - U/UTP Patch (RJ45 to RJ45, Cat5e, 3m, Szürke)
Manhattan Kábel - U/UTP Patch (RJ45 to RJ45, Cat5e, 10m, Szürke)
Manhattan Kábel - U/UTP Patch (RJ45 to RJ45, Cat5e, 1m, Szürke)
Manhattan Kábel - U/UTP Patch (RJ45 to RJ45, Cat5e, 5m, Szürke)
Manhattan Kábel - U/UTP Patch (RJ45 to RJ45, Cat5e, 2m, Szürke)
Manhattan Kábel - UTP Patch (RJ45 to RJ45, Cat6, 10m, Szürke)
Manhattan Kábel - USB hosszabbító kábel (USB2.0, 180cm, Fekete)
Manhattan Kábel - USB nyomtató kábel (USB2.0, 180cm, Fekete)
APPROX Kábel átalakító - USB2.0 to RJ45 (10/100)
Double-shielded twisted pair cable PIMF (Pairs in Metal Foil) shielding Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot Gold-plated contacts for best connection
Double-shielded twisted pair cable PIMF (Pairs in Metal Foil) shielding Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot Gold-plated contacts for best connection
Double-shielded twisted pair cable PIMF (Pairs in Metal Foil) shielding Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot Gold-plated contacts for best connection
Cat7 raw cable with Cat6a modular plugs S/FTP: S = braid shielded; FTP = foiled twisted pair: an aluminum foil screen around each pair (aluminum-Mylar, referred to as PIMF) LSZH Jacket (Low Smoke Zero Halogen) Guaranteed 100% copper pairs Suitable for 10 Gigabit (10/100/1000/10000 Mbit) networks EIA/TIA 568B
